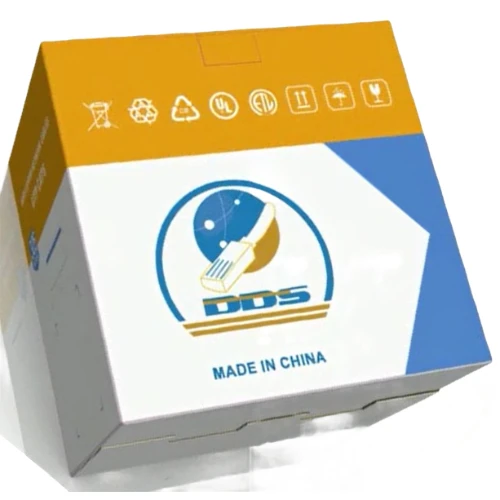

DDS / DNC-LSZHBC305 / UTP LSZH 23AWG ( Pass FLUKE Test ) 305M Cat6 Roll

Specification

• Conductor Material Bare Copper
• Conductor Size 23 AWG Conductor
• Construction Solid
• Insulation Material High Density PE
• Insulation Diameter 1.02±0.03 mm
• Colour Code Per TIA/EIA 568-B
• Total Number of Wires 8
• Rip Cord Yes
• Outer Jacket PVC LSZH
• Outer Jacket Thickness & Ex. Diameter 0.55±0.05 mm, 6.3±0.4 mm
• Impedance 100 Ω ±15
• DC Resistance 73 Ω/km nom.
• Max. Resistance Unbalance 4 %
• Capacitance 5.6 nF/100m max.
• Capacitance Unbalance 3.3 pF/m max.
• Propagation Delay Skew 35 ns/100m max.
• Velocity of Propagation 69 %
• Min. Insulation Resistance 5 GΩ•km
• Max. Tensile Strength – Short Term 110 N
• Min. Bend Radius 53.6 mm
• Operating Temperature Range -10°C to +65°C
