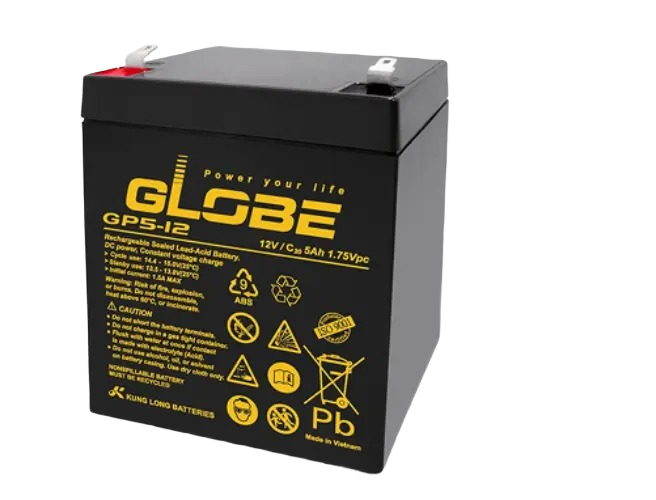

GLOBE GP5-12

Specifications
Nominal Voltage(V)
12V
Nominal Capacity
20 hour rate (0.25A to 10.50V) 5Ah
10 hour rate (0.475A to 10.50V) 4.75Ah
5 hour rate (0.85A to 10.20V) 4.25Ah
1 C (5A to 9.60V) 2.67Ah
3 C (15A to 9.60V) 1.75Ah

Weight
Approx. 1.5kg(3.3Lbs.)
Internal Resistance (at 1KHz) Dimensions
Approx. 39 mΩ Length (L) 90±1 (3.54±0.04)
Maximum Discharge Current for Width (W) 70±1 (2.76±0.04)
5 seconds: 75A Height (H) 101.5±1 (4.00±0.04)
Charging Methods at 25℃(77℉) Overall Height (HT) 107±1 (4.21±0.04)
Maximum Charging Current： 1.5A
Standby use:
Float Charging Voltage 13.5 to 13.8V
Coefficient -3.0mV/℃/cell
mm(inch)

Operating Temperature Range
Charge -15℃(5℉) to 40℃(104℉)
Discharge -15℃(5℉) to 50℃(122℉)
Storage -15℃(5℉) to 40℃(104℉)

Charge Retention (shelf life) at 20℃(68℉)
1 month 97%
3 month 92%
6 month 85%

Case Material
ABS UL94 HB

Design Life Terminal
EUROBAT(20℃): 5 YEARS STANDARD COMMERCIAL F2 (Faston Tab 250)
