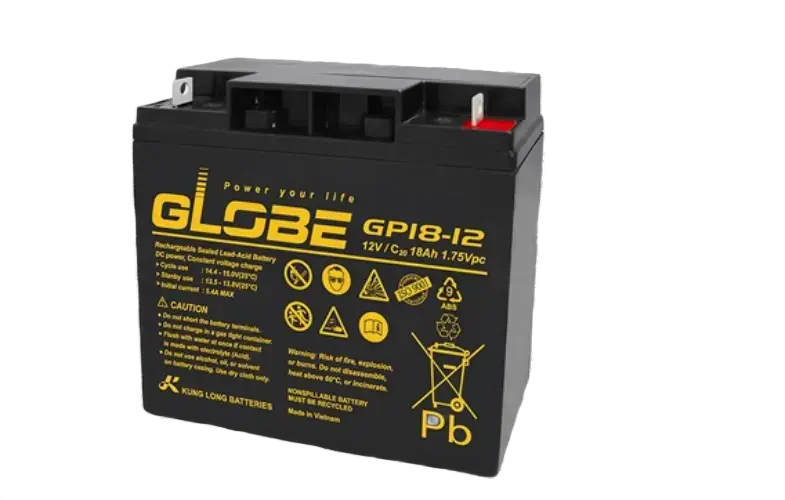

GLOPE GP18-12

Specifications
Nominal Voltage(V)
12V
Nominal Capacity
20 hour rate (0.9A to 10.50V) 18Ah
10 hour rate (1.71A to 10.50V) 17.1Ah
5 hour rate (3.06A to 10.20V) 15.3Ah
1 C (18A to 9.60V) 9.6Ah
3 C (54A to 9.60V) 6.3Ah

Weight

Approx. 5.1kg(11.22Lbs.)
Internal Resistance (at 1KHz) Length (L) 181±2
1
(7.13±0.08 0.04)
Approx. 11 mΩ Width (W) 76±2
1
(2.99±0.08 0.04)
Maximum Discharge Current for Height (H) 167±2
1
(6.57±0.08 0.04)
5 seconds: 270A Overall Height (HT) 167±2
1
(6.57±0.08 0.04)
Charging Methods at 25℃(77℉) mm(inch)
Maximum Charging Current： 5.4A
Standby use:
Float Charging Voltage 13.5 to 13.8V
Coefficient -3.0mV/℃/cell
Charge Retention (shelf life) at 20℃(68℉)
1 month 97%
3 month 92%
6 month 85%

Case Material
ABS UL94 HB
Design Life Terminal
YEARS STANDARD COMMERCIAL ): ℃ EUROBAT(20 3F
