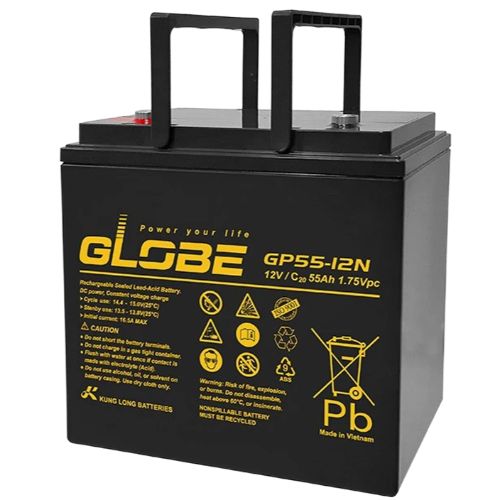

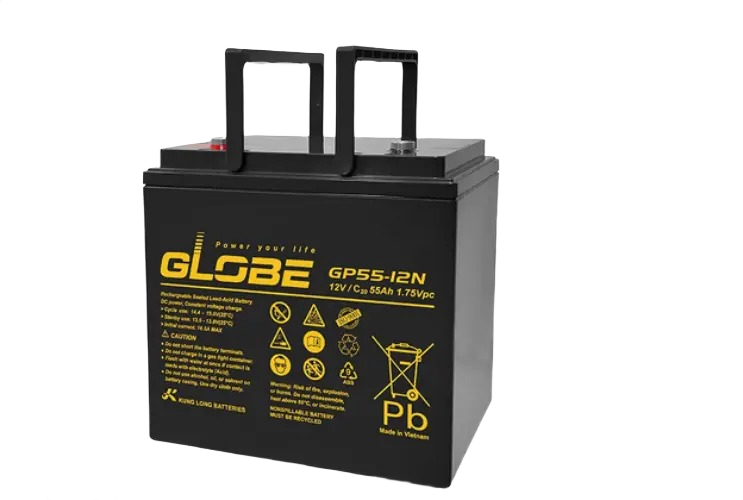

GLOPE GP55-12N

Specifications

Nominal Voltage(V):12V
Nominal CapacityDimensions
20 hour rate (2.75A to 10.50V) 55Ah
10 hour rate (5.225A to 10.50V) 52.25Ah
5 hour rate (9.35A to 10.20V) 46.75Ah
1 C (55A to 9.60V) 29.33Ah
3 C (165A to 9.60V) 19.25Ah

Weight
Approx. 17.1kg(37.62Lbs.)
Internal Resistance (at 1KHz)

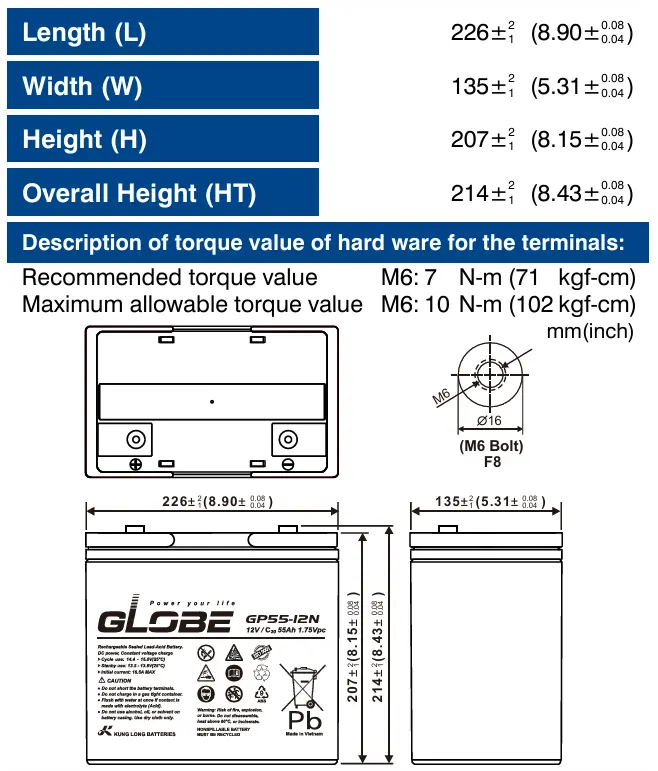

Approx. 6 mΩ Length (L) 226±2
1
(8.90±0.08 0.04)
Maximum Discharge Current for Width (W) 135±2
1
(5.31±0.08 0.04)
5 seconds: 660A Height (H) 207±2
1
(8.15±0.08 0.04)
Charging Methods at 25℃(77℉) Overall Height (HT) 214±2
1
(8.43±0.08 0.04)
Maximum Charging Current： 16.5A
Standby use:
Float Charging Voltage 13.5 to 13.8V
Coefficient -3.0mV/℃/cell
Description of torque value of hard ware for the terminals:
Recommended torque value M6: 7 N-m (71 kgf-cm)
Maximum allowable torque value M6: 10 N-m (102 kgf-cm)
mm(inch)

Operating Temperature Range
Charge -15℃(5℉) to 40℃(104℉)
Discharge -15℃(5℉) to 50℃(122℉)
Storage -15℃(5℉) to 40℃(104℉)

Charge Retention (shelf life) at 20℃(68℉)
1 month 97%
3 month 92%
6 month 85%

Case Material
ABS UL94 HB

Design Life Terminal
F8

40 (104 ) º º C F 30 (86 ) º º C F
20 (68 ) º º C F
10 (50 ) º º C F
0 (32 ) º º C F
Capacity Retention Characteristic
Storage Time (months)
Remaining Capacity
3 6 9 12 15 18 0
25
50
75
100
(%)-20-10 0 10 20 30 40 50-4 14 32 50 68 86 104 122
Temperature
Effect of Temperature on Capacity 25 77F) ºC( º
0
20
40
60
80
100
120
Capacity %
0.05CA
0.1CA
0.25CA
0.6CA
1CA
2CA
ºCºF
5
3
1
Ambient Temperature
30 40 (C) º
68 86 104 ( F) º
20
77
25 35
95
50
122
45
113
Life (years)
Influence of Temperature on
Trickle(Float) Design Life
4 6 8 10 20 40 60 2 4 5 2 6 810
Discharge Time VS. Discharge Current (25C) O
minutes hours
Discharge Time
20 1
8.0
9.0
10.0
11.0
12.0
13.0
FOR 12V
BATTERY
(v)
165A 55A
9.35A
5.225A 2.75A

200525-1A-ARE0023

GP55-12N

226 (8.90 ) ± ± 2 1 0.08 0.04
135 (5.31 ) ± ± 2 1 0.08 0.04
207 (8.15 ) ± ± 2 1 0.08 0.04
214 (8.43 ) ± ± 2 1 0.08 0.04
M6
(M6 Bolt)
F8
16
.
5 YEARS STANDARD COMMERCIAL ): ℃ E
