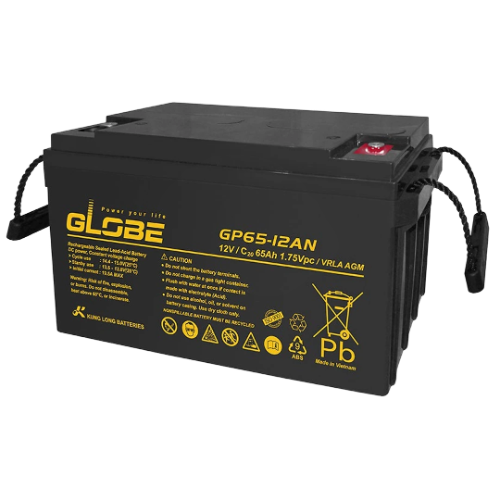

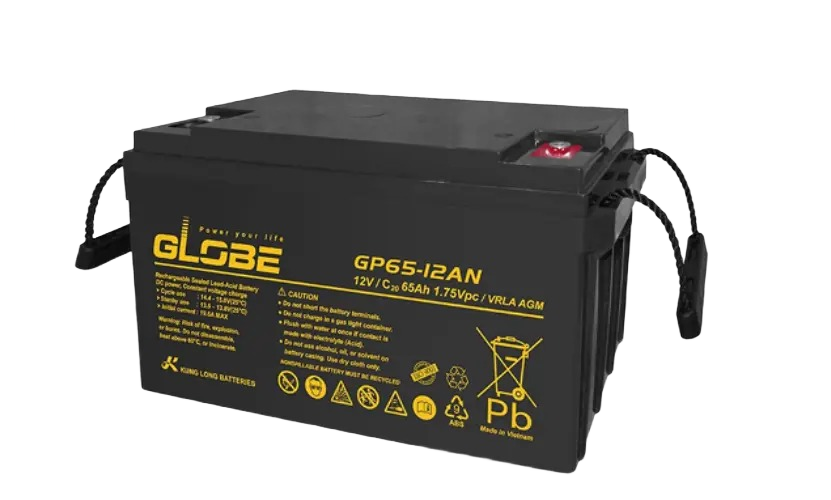

GLOPE GP65-12AN

Specifications
Nominal Voltage(V)
12V
Nominal Capacity
20 hour rate (3.25A to 10.50V) 65Ah
10 hour rate (6.175A to 10.50V) 61.75Ah
5 hour rate (11.05A to 10.20V) 55.25Ah
1C (65A to 9.60V) 41.17Ah
3C (195A to 9.60V) 26Ah

Weight
Approx. 20.5kg(45.1Lbs.)

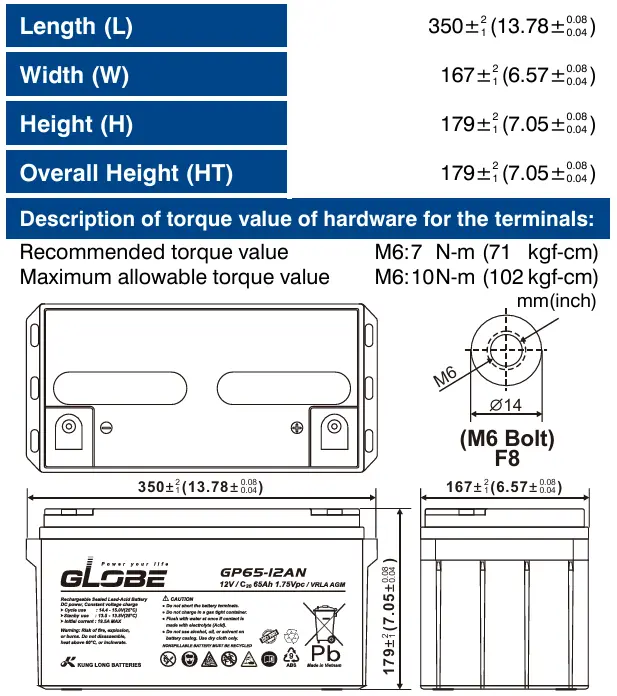

Internal Resistance (at 1KHz) Dimensions
Approx. 6.5 mΩ Length (L) 350±2
1
(13.78±0.08 0.04)
Maximum Discharge Current for Width (W) 167±2
1
(6.57±0.08 0.04)
5 seconds:780A Height (H) 179±2
1
(7.05±0.08 0.04)
Charging Methods at 25℃(77℉) Overall Height (HT) 179±2
1
(7.05±0.08 0.04)
Maximum Charging Current： 19.5A
Standby use:
Float Charging Voltage 13.5 to 13.8V
Coefficient -3.0mV/℃/cell
Description of torque value of hardware for the terminals:
Recommended torque value M6: 7 N-m (71 kgf-cm)
Maximum allowable torque value M6: 10 N-m (102 kgf-cm)
mm(inch)

v

Operating Temperature Range
Charge -15℃(5℉) to 40℃(104℉)
Discharge -15℃(5℉) to 50℃(122℉)
Storage -15℃(5℉) to 40℃(104℉)

Charge Retention (shelf life) at 20℃(68℉)
1 month 97%
3 month 92%
6 month 85%

Case Material
ABS UL94 HB

Design Life & Standard Terminal
EUROBAT(20℃) : 10/12 YEARS LONG LIFE F8
