PQ12-18 12V-18AH
PQ12-18 12V-18AH

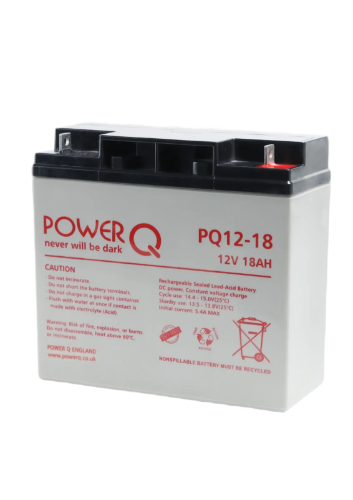

The PQ12-18 is a 12V-18Ah lead-acid battery designed for solar, UPS, and backup power. It delivers reliable performance, long service life, and stable energy storage.
DIMENSIONS
Length (L): 181 ± (7.13 ±) in
Width (W): 76 ± (2.99 ±) in
Height (H): 167 ± (6.57 ±) in
Overall Height (HT): 167 ± (6.57 ±) in
SPECIFICATIONS
Maximum Discharge Current For 5 seconds: 270A
HOW TO USE
Charging Methods at 25°C (77°F):
Cycle use: Charging Voltage 14.4 to 15.0V
Coefficient: -5.0mV/°C/cell
Maximum Charging Current: 5.4A
Standby use: Float Charging Voltage 13.5 to 13.8V
Coefficient: -3.0mV/°C/cell
DIMENSIONS
Length (L): 181 ± (7.13 ±) in
Width (W): 76 ± (2.99 ±) in
Height (H): 167 ± (6.57 ±) in
Overall Height (HT): 167 ± (6.57 ±) in
SPECIFICATIONS
Maximum Discharge Current For 5 seconds: 270A
HOW TO USE
Charging Methods at 25°C (77°F):
Cycle use: Charging Voltage 14.4 to 15.0V
Coefficient: -5.0mV/°C/cell
Maximum Charging Current: 5.4A
Standby use: Float Charging Voltage 13.5 to 13.8V
Coefficient: -3.0mV/°C/cell
