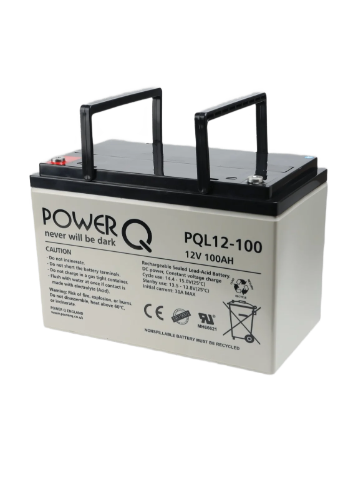

PQL12-100 12V-100AH

The PQL12-100 is a 12V-100Ah lead-acid battery designed for solar, UPS, and backup power. It delivers reliable performance, long service life, and stable energy storage.
DIMENSIONS
Length (L): 307 ±3 mm (12.09 ±0.12 in)
Width (W): 168 ±3 mm (6.61 ±0.12 in)
Height (H): 208 ±3 mm (8.19 ±0.12 in)
Overall Height (HT): 213 ±3 mm (8.39 ±0.12 in)
SPECIFICATIONS
Maximum Discharge Current for 5 seconds: 1200A

HOW TO USE
Charging Methods at 25°C (77°F):

Cycle use
Charging Voltage: 14.4 to 15.0V
Coefficient: -5.0mV/°C/cell
Maximum Charging Current: 30A

Standby use:
Float Charging Voltage: 13.5 to 13.8V
Coefficient: -3.0mV/°C/cell
