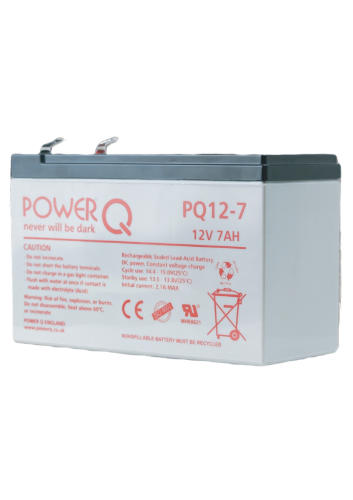

PQ 12V 7 A BATTERY

The PQ12-7 is a 12V-7Ah lead-acid battery designed for solar, UPS, and backup power. It
delivers reliable performance, long service life, and stable energy storage
DIMENSIONS
Length (L): 151 ±1 mm (5.94 ±0.04 in)
Width (W): 65 ±1 mm (2.56 ±0.04 in)
Height (H): 94 ±1 mm (3.70 ±0.04 in)
Overall Height (HT): 102 ±1 mm (4.02 ±0.04 in)
SPECIFICATIONS
Maximum Discharge Current for 5 seconds: 105A

HOW TO USE
Charging Methods at 25 °C (77 °F)

Cycle use
Charging Voltage: 14.4 to 15.0V
Coefficient: -5.0mV/°C/cell
Maximum Charging Current: 2.1A

Standby use
Float Charging Voltage: 13.5 to 13.8V
Coefficient: -3.0mV/°C/cell
