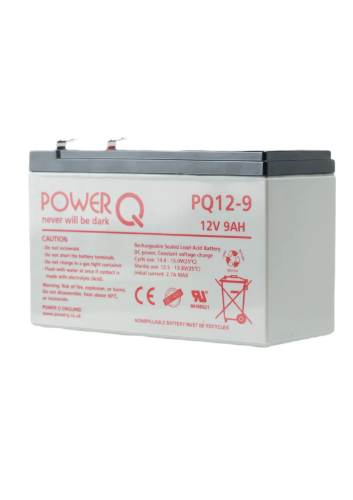

PQ 12-9 12V-9AH

The PQ12-9 is a 12V-9Ah lead-acid battery designed for solar, UPS, and backup power. It delivers reliable performance, long service life, and stable energy storage
DIMENSIONS
Length (L): 151 ± (5.94 ± 0.04) in
Width (W): 65 ± (2.56 ± 0.04) in
Height (H): 94 ± (3.70 ± 0.04) in
Overall Height (HT): 102 ± (4.02 ± 0.04) in
SPECIFICATIONS
Maximum Discharge Current For 5 seconds: 135A
HOW TO USE
Charging Methods at 25°C (77°F):
Cycle use: Charging Voltage 14.4 to 15.0V
Coefficient: -5.0mV/°C/cell
Maximum Charging Current: 2.7A
Standby use: Float Charging Voltage 13.5 to 13.8V
Coefficient: -3.0mV/°C/cell
